5 BBL Steam Fired Brewhouse

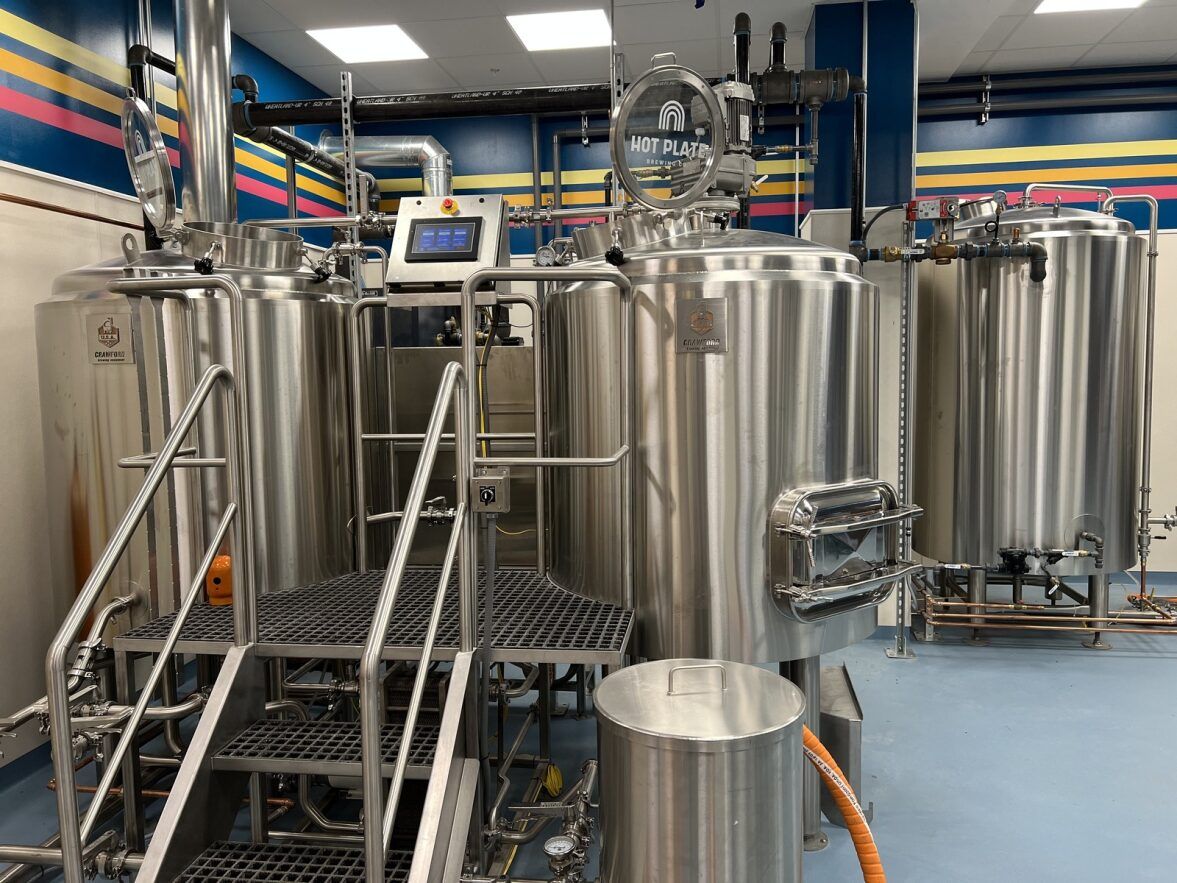

Our 5 bbl steam fired brewhouse is a great choice for smaller brewpubs, or those who want to have many different beers on tap. Both the brewhouse and fermenters can be half-batched, making only 2.5 bbl, so it’s easy to make small amounts of beer to keep brands turning over at the bar. If things get busy, the included 10 bbl hot liquor tank has you covered for double 5 bbl brews into our 10 bbl fermenters. The image, case study, and gallery are of a 7bbl system which is almost indistinguishable from a 5bbl system visually. The 5bbl brewhouse is a new offering from Crawford and we will post updated photos as soon as we have them available.
5 BBL Steam Fired Brewhouse Includes:
- Mash Tun / Lauter Tun
- Brew Kettle / Whirlpool
- Stainless Steel Work Platform with Handrails
- 10 Barrel Automated HLT
- Fully Welded Sanitary Process Piping System
- Complete Electrical Package
5 BBL Steam Fired Brewhouse Specifications:
Mash Tun/Lauter Tun Assembly
- inner diameter all stainless steel T-304 construction, dished top and bottom.
- Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
- Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
- (1) 17”x 21” sealed access door.
- (1) 16” sealed top man door access.
- (1) Thermo-well installed with RTD for measuring temperature in mash / lauter tun
- (1) Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
- 4” diameter leg assembly with standard anchor pads.
- 2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
Brew Kettle/ Whirlpool Assembly:
- inner diameter all stainless steel T-304 construction, dished top and bottom.
- (1) 16” sealed top man door access.
- 4” diameter leg assembly with standard anchor pads.
- 2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
- (1) 8” diameter steam flue slip flange with condensation gutter and drain port.
- Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
- Internally mounted/removable trub dam.
- Internally mounted ladder assembly for easy cleaning access.
- (3) Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
- (1) Thermowell installed with RTD for measuring temperature in brew kettle.
10 BBL Hot Liquor Tank Assembly
- Dished top and bottom.
- (1) Fully welded steam jackets with rear protruding steam/condensate nipples.
- Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
- (1) 16” sealed top man door access.
- (1) Thermo-well installed for your supplied temperature probe.
- 4” diameter leg assembly with standard anchor pads.
- 2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
- The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.
- Hot liquor tank pump as a 1hp 208/230V 3 phase motor with all stainless steel recirculation piping installed to ensure consistent strike water temperatures.
Sanitary Piping System
- (1) Stainless steel work platform with handrails provided with an FDA approved chem-grate material decking. You will not need to remove this for any wash down procedures.
- (1) Fully welded sanitary process piping package including:
- All Sanitary Gaskets
- Butterfly Valves
- Site Glasses
- Tri Clamps
- (1) Transfer pump:
- 2 hp 208/230V 3 phase motor.
- Pump mounted to the bottom of the access platform and complete with all piping connections.
- (1) Dual stage all stainless-steel Mueller heat exchanger assembly mounted to the underside of the access platform. We do offer a single stage heat exchanger if you prefer.
- (1) Grant/ Hop Back complete with:
- Built in float switches.
- Removable wedge wire bottom screen with lift out handle.
Standard Control/Electrical package will include:
- UL Listed stainless steel wash down electrical box to include:
- 10” touch screen HMI display.
- Temperature readout for the mash tun, brew kettle & HLT.
- Automated temperature control for the HLT.
- VFD for main transfer pump.
- Float switch controllers for the grant/hop back kettle.
- VFD for the hot liquor tank pump.
- On/Off/Auto switch for the transfer pump assembly.
- Wiring diagram for operation of the system.
Our main system power requirements are standard 208V 3 phase power. Alternate supply power options are available upon request. Some cost increases may apply.
