Brewhouse

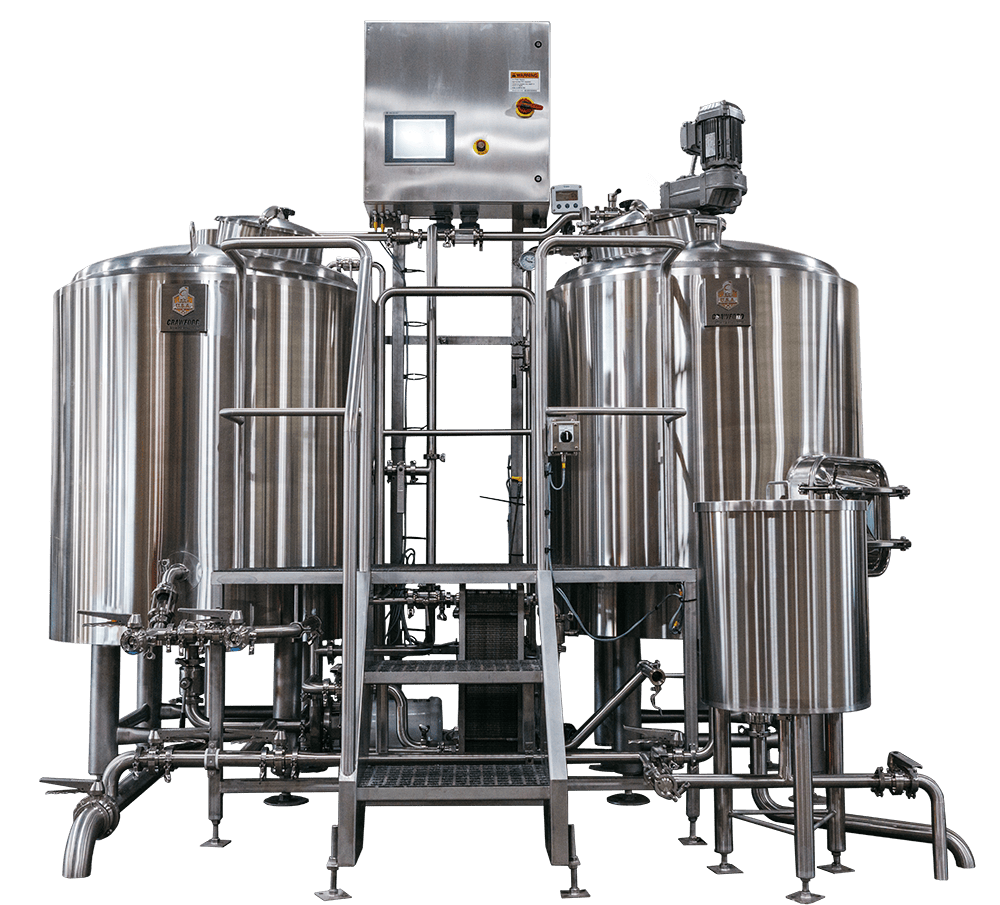

7 BBL Electric Brewhouse

Our 7 bbl electric brewhouse is a great choice for smaller brewpubs, or those who want to have many different beers on tap. Both the brewhouse and fermenters can be half-batched, making only 3.5 bbl, so it’s easy to make small amounts of beer to keep brands turning over at the bar. Since this brewhouse is electric, there are some cost and space savings since no boiler is needed.

Request a Quote

7 BBL Electric Brewhouse Includes:

  • Mash Tun / Lauter Tank
  • Brew Kettle / Whirlpool
  • Stainless Steel Work Platform with Handrails
  • Fully Welded Sanitary Process Piping System
  • Complete Electrical Package

7 BBL Electric Brewhouse Specifications:

(1) Mash Tun/ Lauter Tank Assembly

  • 54” inner diameter all stainless steel T-304 construction, dished top and bottom.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
  • (1) 17” x 21” sealed access door.
  • (1) 16” sealed top man door access.
  • (1) Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun (Please note that we recommend a 42” Digital wand to measure multiple places in Mash / Lauter Tun to gauge an accurate temperature).
  • 2” mineral wool insulation with 14 gauge polished stainless steel outer shell.

(1) Brew Kettle w/Whirlpool Assembly

  • 44” inner diameter all stainless steel T-304 construction, dished top and bottom.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • (1) 16” sealed top man door access.
  • Internally mounted/removable trub dam.
  • Internally mounted ladder assembly for easy cleaning access.
  • Heating elements in the Boil Kettle
  • (1) Thermowell installed with RTD for measuring temperature in Brew Kettle.
  • 4” diameter leg assembly with standard anchor pads.
  • 2” mineral wool insulation with 14 gauge polished stainless steel outer shell.

Sanitary Piping System:

  • (1) Stainless steel work platform with handrails provided with an FDA approved chem-grate material decking. You will not need to remove this for any wash down procedures.
  • (1) Fully welded sanitary process piping package including:
    •  All Sanitary Gaskets
    • Butterfly Valves
    • Site Glasses
    • Tri Clamps
  • (1) SPX Transfer pump.
    • 1-1/2hp 208/230V 3 phase motor.
    • Pump mounted to the bottom of the access platform and complete with all piping connections.
  • (1) Dual stage all stainless-steel Mueller heat exchanger assembly mounted to the underside of the access platform. We do offer a single stage heat exchanger with our systems dependent of your specific needs.
    • (1) Grant/ Hop Back kettle complete with:
    • Built in float switches.
    • Removable wedge wire bottom screen with lift out handle.

Standard Control/Electrical package will include:

  • UL Listed Stainless steel wash down electrical box to include:
    • 10” Touch screen HMI display.
    • Temperature readout for the Mash Tun, Brew Kettle
    • Automated temperature control for the HWOD (Hot Water On Demand).
    • VFD for main transfer pump.
    • Float switch controllers for the Grant/Hop back kettle.
  • On/Off/Auto switch for the Transfer pump assembly.
  • Wiring diagram for operation of this system.

Our main system power requirements are standard 208V 3 phase power. Alternate supply power options are available upon request. Some cost increases may apply.
